Nylon Filter Mesh

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Introduction

Widely used in liquid, gas, solid filtration, such as food, water treatment, medicine, air, powder filtration, etc.

Introduction

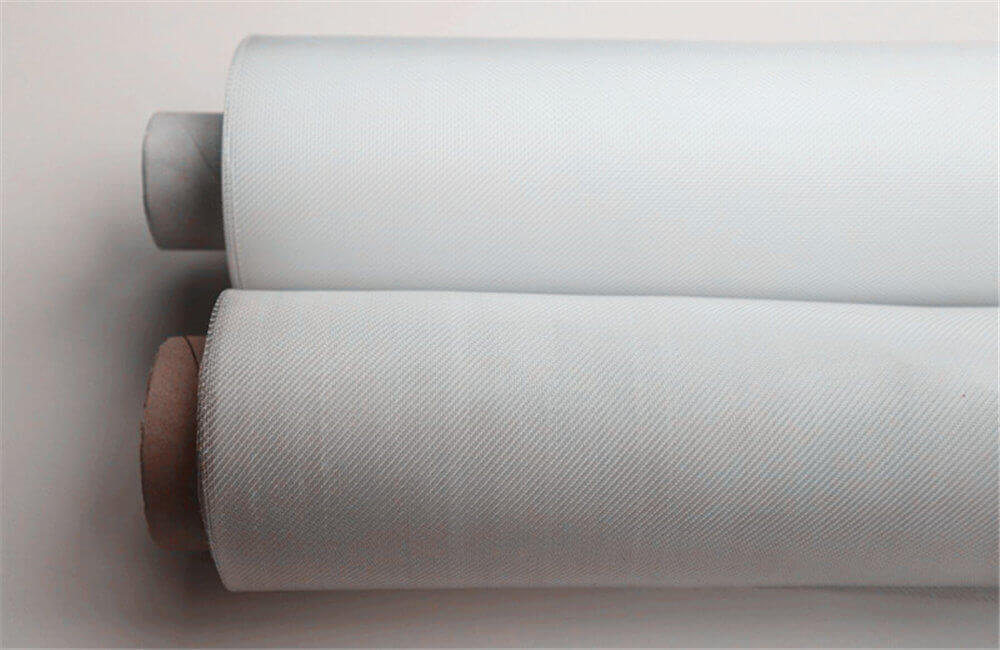

Product name:nylon filter mesh,filter membrane
Materials: PA6, PA66
Specification: JPP4-JPP200 (1950UM-5UM)
Weave Type:plain weave, twill weave，dutch weave
Width: 100cm, 127cm, 183cm, or customized
Product Form: rolls
Roll Length: 30-100m/Roll, Fixed Length, or customized
Color: Natural or white, or customized

Advantages:
The mesh openings are uniform, stable, elastic, wear-resistant, smooth, alkali-resistant, easy to clean and light in texture.

Usage:
Mainly used in liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, food and other industrial screening and filtering.

Technical Parameters

Model	mesh count (/cm)	mesh count (/inch)	thread dia (um)	mesh opening (um)	thickness (um)	weight (g/m2)
NL4/1950	4	10	550	1950	1100	307
NL5/1500	5	13	500	1500	1000	318
NL6/1267	6	15	400	1267	800	244
NL7/1079	7	18	350	1079	700	218
NL8/900	8	20	350	900	700	249
NL9/861	9	23	250	861	500	143
NL9/811	9	23	300	811	600	206
NL10/750	10	25	250	750	500	159
NL10/700	10	25	300	700	600	229
NL12/583	12	30	250	583	500	191
NL12/533	12	30	300	533	600	274
NL14/514	14	36	200	514	340	142
NL16/425	16	40	200	425	340	160
NL20/350	20	50	150	350	255	113
NL20/300	20	50	200	300	340	200
NL24/267	24	60	150	267	255	135
NL28/237	28	70	120	237	204	101
NL30/213	30	76	120	213	204	110
NL32/213	32	80	100	213	170	80
NL36/178	36	90	100	178	170	90
NL40/150	40	100	100	150	170	100
NL43/153	43	110	80	153	136	70
NL48/128	48	120	80	128	136	77
NL56/119	56	140	60	119	102	50
NL64/96	64	160	60	96	102	58
NL72/89	72	180	50	89	85	45
NL80/75	80	200	50	75	85	50
NL100/57	100	250	43	57	73	46
NL110/48	110	280	43	48	73	52
NL120/48	120	300	35	48	60	37
NL120/40	120	300	43	40	73	55
NL130/42	130	330	35	42	60	40
NL130/34	130	330	43	34	73	61
NL140/36	140	350	35	36	60	43
NL157/25	157	400	43	25	73	74
NL180/20	180	450	39	20	66	68
NL200/15	200	500	39	15	66	76
NL220/10	220	550	39	10	66	84
NL240/5	240	600	39	5	66	91
