Micron Filter Membrane

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Introduction

It is widely used in liquid filtration, especially for high-precision liquid products, such as paint, sewage, purified water treatment and so on.

Introduction

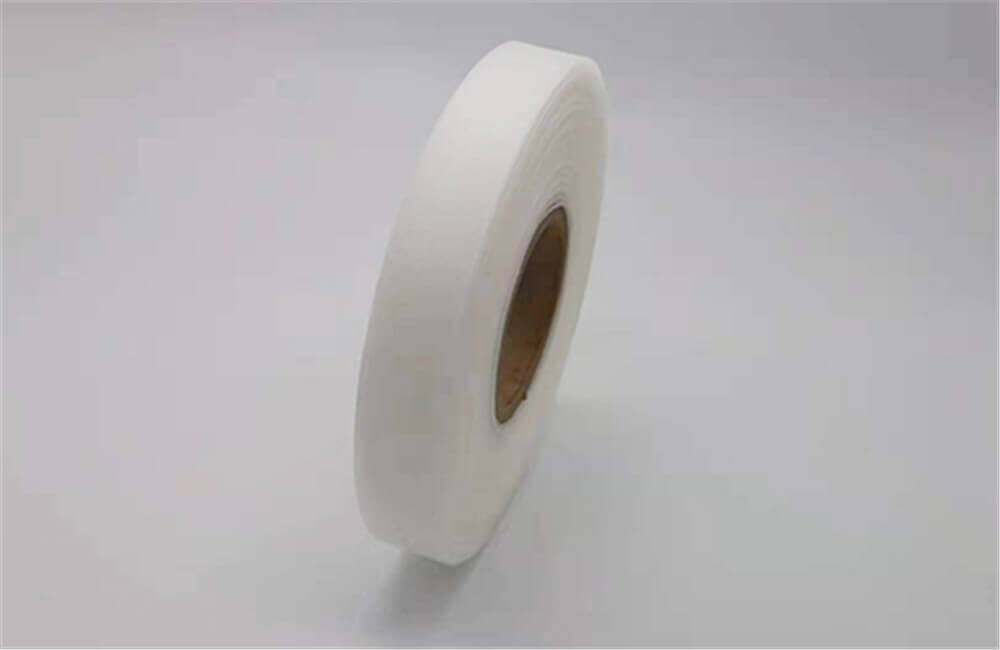

Product Name: Micron Filter Membrane
Materials: PA6, PA66, PET
Specification: JPP120-JPP240 (50UM-5UM)
Weave Type:plain, twill, dutch weave
Width: 100cm, 127cm, 183cm, or customized
Product Form: rolls
Roll Length: 30-100m/Roll, Fixed Length, or customized
Color: Natural or white, customizable

Advantages:
The mesh openings are uniform, stable, elastic, wear-resistant, smooth, alkali-resistant, easy to clean and light in texture.

Usage:
Mainly used for liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, aquaculture, impurity filtration, food and other industrial screening and filtering.

Technical Parameters

Model	mesh count (/cm)	mesh count (/inch)	thread dia (um)	mesh opening (um)	thickness (um)	weight (g/m2)
NL120/48	120	300	35	48	60	37
NL120/40	120	300	43	40	73	55
NL130/42	130	330	35	42	60	40
NL130/34	130	330	43	34	73	61
NL140/36	140	350	35	36	60	43
NL157/25	157	400	43	25	73	74
NL180/20	180	450	39	20	66	68
NL200/15	200	500	39	15	66	76
NL220/10	220	550	39	10	66	84
NL240/5	240	600	39	5	66	91
