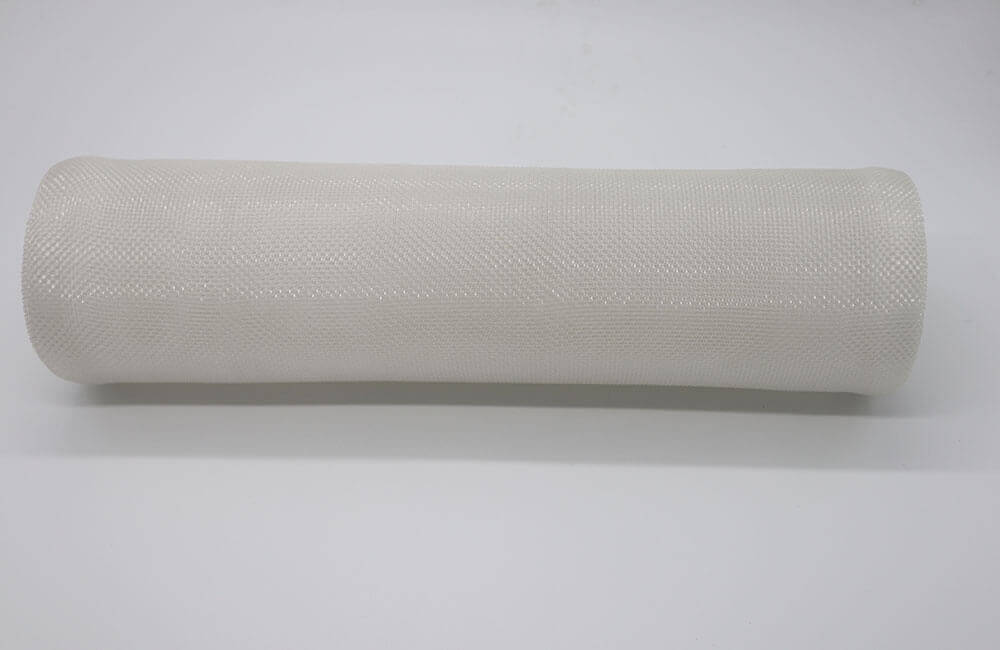

Nylon Mesh Belt
Type: plain weave, twill weave, etc.
Edge treatment methods: double knitting edge, heat treatment edge, etc.
Main Applications: Widely used in papermaking, non-woven impregnated screen curtain, etc.
Advantages: Complete specifications, flexible length and width customization
|
Type |
Specification (/cm) |
Mesh count (mesh/inch) |
Thread Diameter （um） |
Mesh opening（um） |
Open Area（%） |
Thickness（um） |
g/㎡ |
|
SS-NL8/891 |
8 |
20 |
350 |
891 |
51 |
700 |
203 |
|
SS-NL10/693 |
10 |
25 |
300 |
693 |
48 |
600 |
187 |
|
SS-NL12/578 |
12 |
30 |
250 |
578 |
48 |
500 |
156 |
|
SS-NL12/528 |
12 |
30 |
300 |
528 |
40 |
600 |
224 |
|
SS-NL14/410 |
14 |
35 |
300 |
410 |
33 |
510 |
261 |
|
SS-NL14/509 |
14 |
35 |
200 |
509 |
51 |
340 |
116 |
|
SS-NL16/421 |
16 |
41 |
200 |
421 |
45 |
340 |
136 |
|
SS-NL20/297 |
20 |
50 |
200 |
297 |
35 |
340 |
166 |
-
