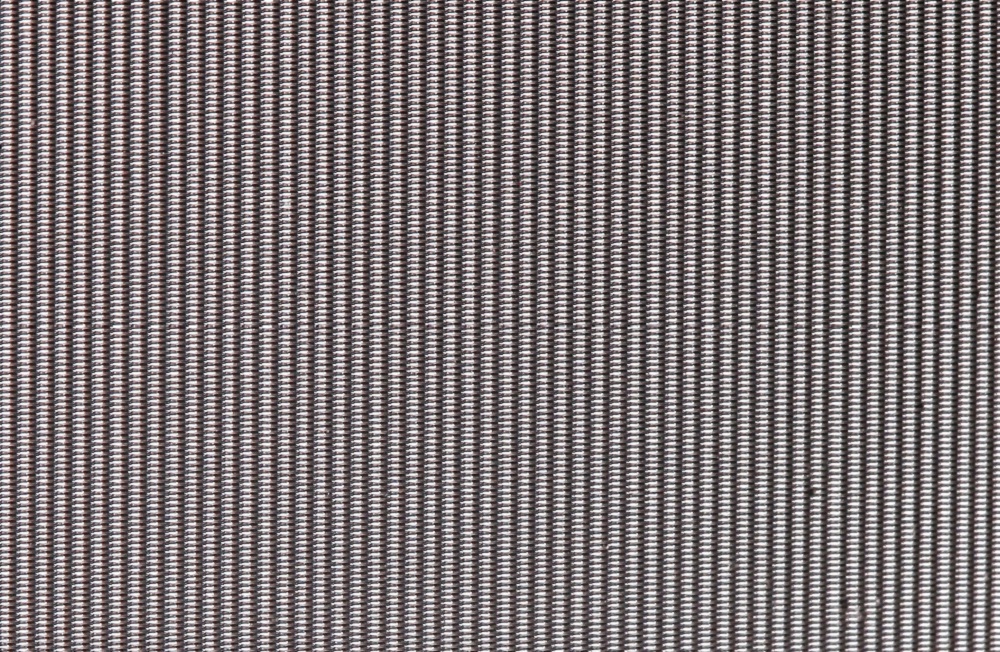

Dutch Weave Stainless Steel Wire Mesh
The scientific name of the stainless steel dutch type net is densely-grained net, which is also called Helan cloth in the south of the Yangtze River or abroad.
It is woven with high-quality stainless steel wire.
The main feature is that the warp and weft wire diameter and density have a large contrast, so the thickness of the net and the filtration accuracy and service life are significantly improved compared to the square mesh.
Its filtration accuracy cannot be achieved by square mesh.
stainless steel wire mesh, plain weave stainless steel wire mesh, twill weave stainless steel wire mesh, dutch weave stainless steel wire mesh, stainless steel mesh, stainless steel filter mesh, stainless steel mesh filter, stainless steel wire filter mesh, stainless steel filter wire mesh, stainless steel screen mesh, stainless steel mesh screen, stainless steel screen filter mesh, stainless steel filter mesh screen, stainless steel filter screen mesh.
Material: SUS302, 304, 304L, 316, 316L, etc.
Specifications: 32#-650#
Width: 1 meter, 1.5 meters, can be customized
Roll length: 30 meters, can be customized
Weaving method: plain dutch weave, twill dutch weave
Performance: acid resistance, alkali resistance, high temperature resistance, strong tensile and wear resistance, stable filtration performance, fineness, high precision and special filtration performance.
Features: The main feature is that there is a large contrast between the warp direction and the weft wire diameter and density. Therefore, the thickness and filtration precision and service life of the net are obviously improved compared with the square hole net. The filtering precision is not realized by the square hole mesh. .
Uses: The products are mainly used for gas, liquid filtration and other medium separation; widely used in precision pressure filters, fuel filtration, vacuum filters, filter materials, aerospace, oil refining, medicine, sugar, petroleum, chemical, chemical fiber, rubber , tire manufacturing, metallurgy, food, health research and other industries.
|
No. |
mesh count |
thread diameter/mm |
mesh opening/um |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
|
twill dutch weave stainless steel mesh |
|||
|
360# |
91 x 787 |
0.10mm x 0.07 |
25 |
|
400# |
101 x 900 |
0.10mm x 0.063 |
20 |
|
472# |
120 x 400 |
0.10mm x 0.075 |
- |
|
500# |
127 x 1100 |
0.07mm x 0.05 |
17 |
|
630# |
160 x 1500 |
0.063mm x 0.04 |
15 |
|
650#(1) |
165 x 400 |
0.071mm x 0.06 |
- |
|
650#(2) |
165 x 600 |
0.071mm x 0.05 |
- |
|
650#(3) |
165 x 800 |
0.071mm x 0.05 |
25 |
|
650#(4) |
165 x 1100 |
0.071mm x 0.045 |
- |
|
650#(5) |
165 x 1400 |
0.071mm x 0.04 |
16 |
-
